AEC-Q200 Certified High Frequency Power Transformer with 4KVrms Isolation Voltage and Compact SMD Footprint for EVs & Industry 4.0

5000
MOQ
AEC-Q200 Certified High Frequency Power Transformer with 4KVrms Isolation Voltage and Compact SMD Footprint for EVs & Industry 4.0
Характеристики Галерея Характер продукции Поговорите сейчас
Характеристики
Характеристики
Выделить:

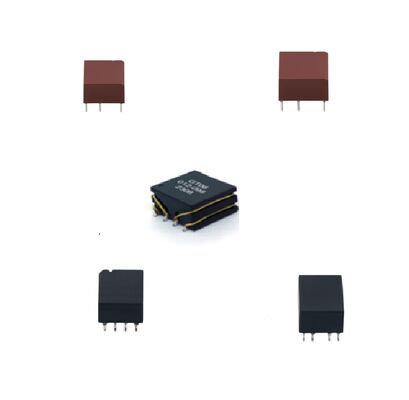

AEC-Q200 Certified High Frequency Transformer

,

4KVrms Isolation Voltage Power Transformer

,

Compact SMD Footprint Isolation Transformer
Основная информация
Место происхождения: Китай
Фирменное наименование: SHINHOM
Сертификация: RoHS
Номер модели: GT06KXXA0
Документ: GT06KXXA0 _.pdf
Оплата и доставка Условия
Время доставки: 2 ~ 8 недели
Условия оплаты: Л/К, Т/Т
Характер продукции
Automotive-Grade High-Voltage Isolation Power Transformer for EVs & Industrial 4.0 Systems
Designed for the most demanding automotive and industrial environments, the GT06K Series is an AEC-Q200 certified high-voltage isolation transformer that ensures reliable performance under extreme conditions, including wide temperature ranges (-40℃ to +125℃), vibration, and salt spray. Featuring reinforced insulation compliant with IEC62368-1 and a minimum 8mm creepage distance, it provides robust electrical isolation up to 4KVrms for safety-critical applications. Its compact SMD footprint and wave-solderable design make it an ideal choice for next-generation electric vehicles and smart manufacturing systems requiring high efficiency, high reliability, and Industry 4.0 compatibility.
Key Specifications
Turns Ratio Options Multiple configurations from 1:1 to 8:3 (e.g., 1:1, 1:2, 2:1, 3:4, 3:5, 3:8, 4:3, 8:3, 8:9, 1:1.7)
Inductance (Pin 1-3) 538µH or 680µH (±35%) measured at 100kHz, 100mVrms
Leakage Inductance 0.6µH to 2.0µH max (primary with secondary shorted)
Capacitance (Primary to Secondary) 15pF to 30pF max
DC Resistance (Primary 1-3) 750mΩ to 1500mΩ max
DC Resistance (Secondary 6-4) 750mΩ to 1500mΩ max
Isolation Voltage 4KVrms (550Vrms continuous operation)
Creepage & Clearance Distance ≥ 8mm between primary and secondary windings
Operating & Storage Temperature -40℃ to +125℃
Certification & Compliance AEC-Q200 qualified, IEC62368-1 reinforced insulation
MSL Rating Level 1, floor life 0.5 year under ≤30°C / 60% RH
Soldering Profile Recommended wave soldering profile included with preheat, ramp-up, peak temperature (250°C±3°C), and ramp-down guidelines
Applications
Electric Vehicle Systems: On-board chargers (OBC), battery management systems (BMS), electric drive units, and DC-DC converters
EV Charging Infrastructure: AC/DC power modules in charging stations and wall boxes
Industrial Automation & Industry 4.0: Motor drives, servo controllers, PLCs, and high-precision motion control systems
Renewable Energy: Photovoltaic inverters, energy storage systems (ESS), and grid-tied converters
Telecommunications & Networking: Isolated power supplies for routers, switches, and PoE equipment
Medical & Railway Electronics: Safety-isolated power stages where high reliability and certification are mandatory
